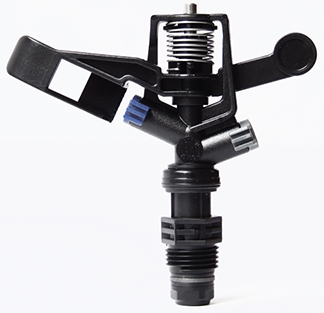

N50-23型摇臂喷头-完美喷洒效果

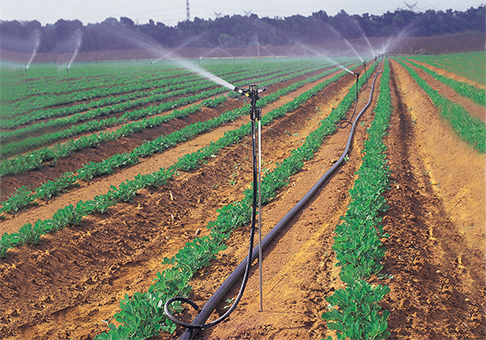

产品主要特点： 应用范围：多用途农业与园林灌溉，如甘蔗、玉米、甜菜、草坪等喷嘴设计独特，超大射程，出色的喷洒均匀度（超过 90% CU）喷洒水滴理想，低流量大喷径，不会使土地板结喷头材质：主材为优质高强度耐农业化学品塑料，
弹簧及转轴为不锈钢接口形式：½"
外螺纹接口或3/4“内螺纹接口喷洒直径：22 -
26.5米工作压力：2.5 -
4bar最大间距：14
m |
|
|
 |
有全套喷头底座、胶管、镀锌立杆、胶管接头与堵头可选。
|
|
| 性能参数表 |
|
喷嘴 mm |
压力 bar |
流量 m3/h |
直径 m |
灌溉强度(mm/h)-喷头间距(m) |
||||
|
10x10 |
10x12 |
12x12 |
12x14 |
14x14 |
||||
|
2.3 x 1.8 灰色 |
2.5 |
0.510 |
22.0 |
5.1 |
4.3 |
3.5 |
3.0 |
2.6 |
|
3.0 |
0.580 |
22.0 |
5.6 |
4.7 |
3.9 |
3.3 |
2.9 |
|
|
3.5 |
0.600 |
22.0 |
6.0 |
5.0 |
4.2 |
3.6 |
3.1 |
|
|
4.0 |
0.640 |
22.0 |
6.4 |
5.3 |
4.4 |
3.8 |
3.3 |
|
|
2.5 x 1.8 紫色 |
2.5 |
0.580 |
21.0 |
5.8 |
4.8 |
4.0 |
3.5 |
3.0 |
|
3.0 |
0.630 |
21.0 |
6.3 |
5.3 |
4.4 |
3.8 |
3.2 |
|
|
3.5 |
0.670 |
21.0 |
6.7 |
5.6 |
4.7 |
4.0 |
3.4 |
|
|
4.0 |
0.720 |
21.5 |
7.2 |
6.0 |
5.0 |
4.3 |
3.7 |
|
|
2.8 x 1.8 橙色 |
2.5 |
0.690 |
22.0 |
6.9 |
5.8 |
4.8 |
4.1 |
3.5 |
|
3.0 |
0.760 |
22.0 |
7.6 |
6.3 |
5.3 |
4.5 |
3.9 |
|
|
3.5 |
0.820 |
22.0 |
8.2 |
6.8 |
5.7 |
4.9 |
4.2 |
|
|
4.0 |
0.860 |
22.0 |
8.6 |
7.2 |
6.0 |
5.1 |
4.4 |
|
|
3.0 x 1.8 红色 |
2.5 |
0.760 |
22.0 |
7.6 |
6.3 |
5.3 |
4.5 |
3.9 |
|
3.0 |
0.840 |
23.0 |
8.4 |
7.0 |
5.8 |
5.0 |
4.3 |
|
|
3.5 |
0.900 |
23.0 |
9.0 |
7.5 |
6.3 |
5.4 |
4.6 |
|
|
4.0 |
0.970 |
23.0 |
9.7 |
8.1 |
6.7 |
5.8 |
4.9 |
|
|
3.2 x 1.8* 绿色 |
2.5 |
0.820 |
23.0 |
8.2 |
6.8 |
5.7 |
4.9 |
4.2 |
|
3.0 |
0.900 |
24.0 |
9.0 |
7.5 |
6.3 |
5.4 |
4.6 |
|
|
3.5 |
0.980 |
24.0 |
9.8 |
8.2 |
6.8 |
5.8 |
5.0 |
|
|
4.0 |
1.040 |
24.0 |
10.4 |
8.7 |
7.2 |
6.2 |
5.3 |
|
|
3.5 x 2.5 蓝色 |
2.5 |
1.060 |
24.5 |
10.6 |
8.8 |
7.4 |
6.3 |
5.4 |
|
3.0 |
1.160 |
25.0 |
11.6 |
9.7 |
8.1 |
6.9 |
5.9 |
|
|
3.5 |
1.240 |
25.5 |
12.4 |
10.3 |
8.6 |
7.4 |
6.3 |
|
|
4.0 |
1.330 |
26.0 |
13.3 |
11.1 |
9.2 |
7.9 |
6.8 |
|
|
4.0 x 2.5 黑色 |
2.5 |
1.260 |
25.0 |
12.6 |
10.5 |
8.7 |
7.5 |
6.4 |
|
3.0 |
1.380 |
25.5 |
13.8 |
11.5 |
9.6 |
8.2 |
7.0 |
|
|
3.5 |
1.480 |
26.0 |
14.8 |
12.3 |
10.3 |
8.8 |
7.5 |
|
|
4.0 |
1.580 |
26.5 |
15.8 |
13.2 |
11.0 |
9.4 |
8.1 |
|
